Heathrow Express Extension – Terminal 5

The Heathrow Express Extension project was a critical element of the wider Heathrow Terminal 5 development, designed to extend the dedicated Heathrow Express rail service beyond the Central Terminal Area (Terminals 2 and 3) directly to the new Terminal 5.

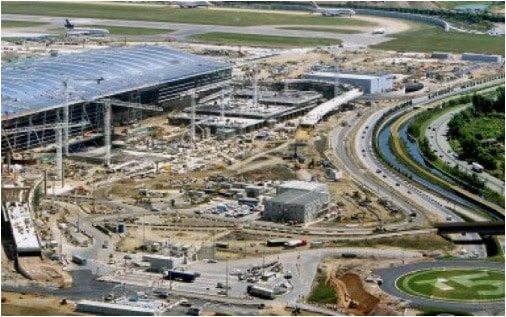

The scheme involved constructing new bored rail tunnels and an underground station beneath Terminal 5, enabling seamless, high‑frequency services between London Paddington and the airport’s newest terminal. Delivered during 2004–2005 as part of the £4.3 billion Terminal 5 programme, the extension ensured that rail would be the primary mode of access for a significant proportion of passengers, supporting Heathrow’s surface‑access strategy and reducing pressure on road infrastructure.

Technically, the project was highly complex due to construction taking place beneath a major operating international airport and adjacent to live railway infrastructure.

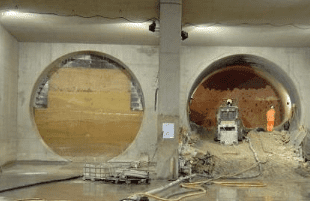

A key challenge was the safe breakout of a tunnel boring machine into the existing Heathrow Express running tunnels, requiring rigorous structural control and real‑time deformation monitoring to ensure uninterrupted train operations and passenger safety.

The completed extension provided two dedicated Heathrow Express platforms beneath Terminal 5, integrated with the Piccadilly Line and the terminal’s internal transit systems, creating one of the UK’s most sophisticated air‑rail interchanges.

Sixense played a critical role in ensuring the safety and continuity of rail operations during the Heathrow Express Extension Terminal 5 project by delivering a comprehensive structural monitoring solution for the existing Heathrow Express running tunnels.

Appointed by BAA (now Heathrow Airport Ltd), Sixense were responsible for monitoring the live railway infrastructure during the construction of the new Terminal 5 tunnels, particularly during the most sensitive phase when the tunnel boring machine (TBM) broke through into the existing Heathrow Express turnout stub.

To manage this risk, Sixense designed and installed a real‑time monitoring system comprising two automated total stations (Cyclops ATS), 120 prism targets, and 80 manually read prisms, enabling continuous measurement of tunnel movements with high precision. Data were collected and visualised using Sixense’s Geoscope monitoring software, allowing engineers to assess tunnel behaviour in real time and ensure operational thresholds were not exceeded.

In parallel with on‑site monitoring, Sixense established a remote alarm and communication system linked directly to the Heathrow Express control room, providing immediate alerts if predefined movement limits were breached. This arrangement enabled train services to be halted instantly if required, safeguarding passengers and infrastructure while allowing construction activities to proceed safely beneath an operating airport.

Sixense engineers maintained 24‑hour attendance during critical TBM passage phases, supporting contractors and Heathrow operators throughout the 18‑month monitoring period between 2004 and 2005. The successful management of this interface between new tunnelling works and live rail assets was a key enabler in delivering the Heathrow Express Extension without disruption.
