The Shard of Glass

Project summary

Service provided:  Real-time structural monitoring during skyscraper construction
Location:  London, UK
See google map
Client:  Network Rail / London Underground
Period of the service:  2007-2009
Duration of service:  24 months
Sixense solutions used:

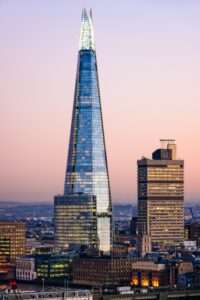

London’s iconic skyscraper

The Shard of Glass is a significant landmark on the London skyline. Completed in 2012, this mixed use iconic structure stands 310 m tall, making it the tallest in the United Kingdom and one of the tallest in Europe, with a total of 87 floors.



The Shard sits on a site that was previously occupied by Southwark Towers, a 24 storey 1970’s office block. The foundations of the Shard sit immediately above and adjacent to one of London’s major transport hubs, London Bridge Station.

Extensive monitoring during construction

In order to determine the performance of both London Underground and Network Rail assets, an extensive monitoring regime was designed and introduced over the period of demolition and construction. Escalators, running tunnels, pedestrian passageways and the ‘vaults’ market hall required monitoring in real-time to evaluate infrastructure behaviour and allow normal operation of the railway network.



A detailed predicted settlement footprint meant that neighbouring building facades, including the world famous Guys Hospital, office blocks and viaduct arches, also required real-time monitoring. In addition, the basement development of the Shard was monitored to determine the structural performance as it was constructed.



All of the data from the various automated instruments and manual surveys was collected and processed, enabling real-time visual representations of any structural movements recorded. A report was generated on a weekly basis and distributed to the client’s team.



The client also had access to the real-time data via Sixense’s Geoscope monitoring software.

Project Key figures

19 Cyclops Automated Total Stations
224 Electrolevels, tiltmeters and bi-axial monopods
19 Inclinometer boreholes
